Parameter：

• Dimensions: 12350 (12200 + 150 head guard) × 2480 × 1600 mm

• Wheelbase: 5750+1310+1310+1310+1520; Front overhang: 1000 mm

• Main beam: Height 550 mm; Top plate 20 mm, Middle plate 10 mm, Bottom plate 20 mm

• Side beam: No.20 channel steel

• Floor: 5 mm checkered plate

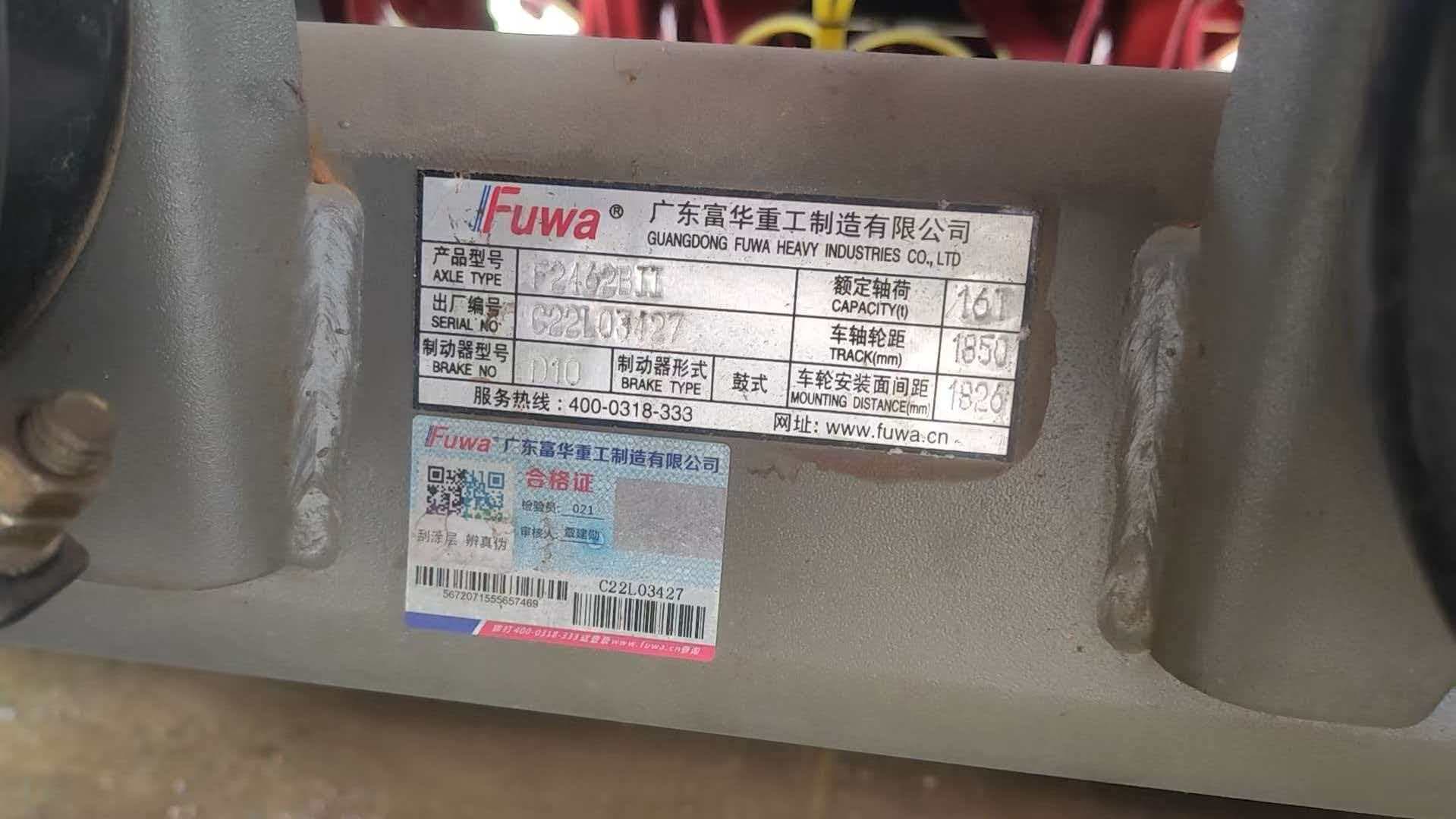

• Axle: 4 sets of FUWA 16-ton axles with 220 mm brake shoes

• Suspension & leaf spring: 10-piece leaf spring (90×16 mm), standard American mechanical suspension

• Kingpin: 90# assembled type

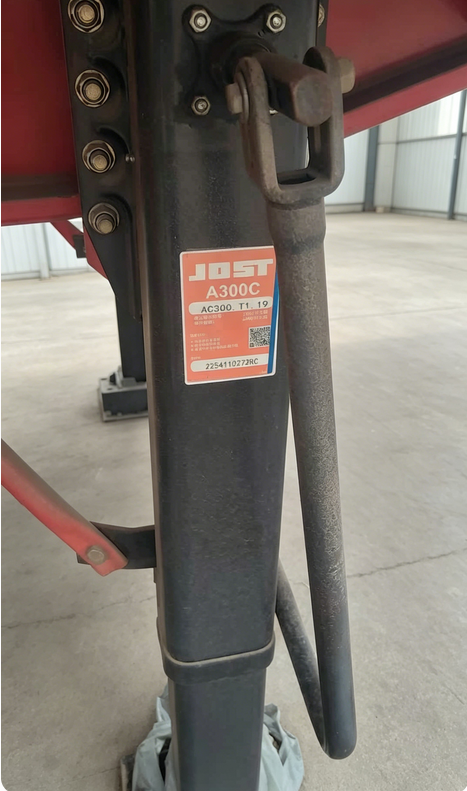

• Landing gear: JOST 19-inch, 28-ton capacity

• Container twist locks: 8 pieces

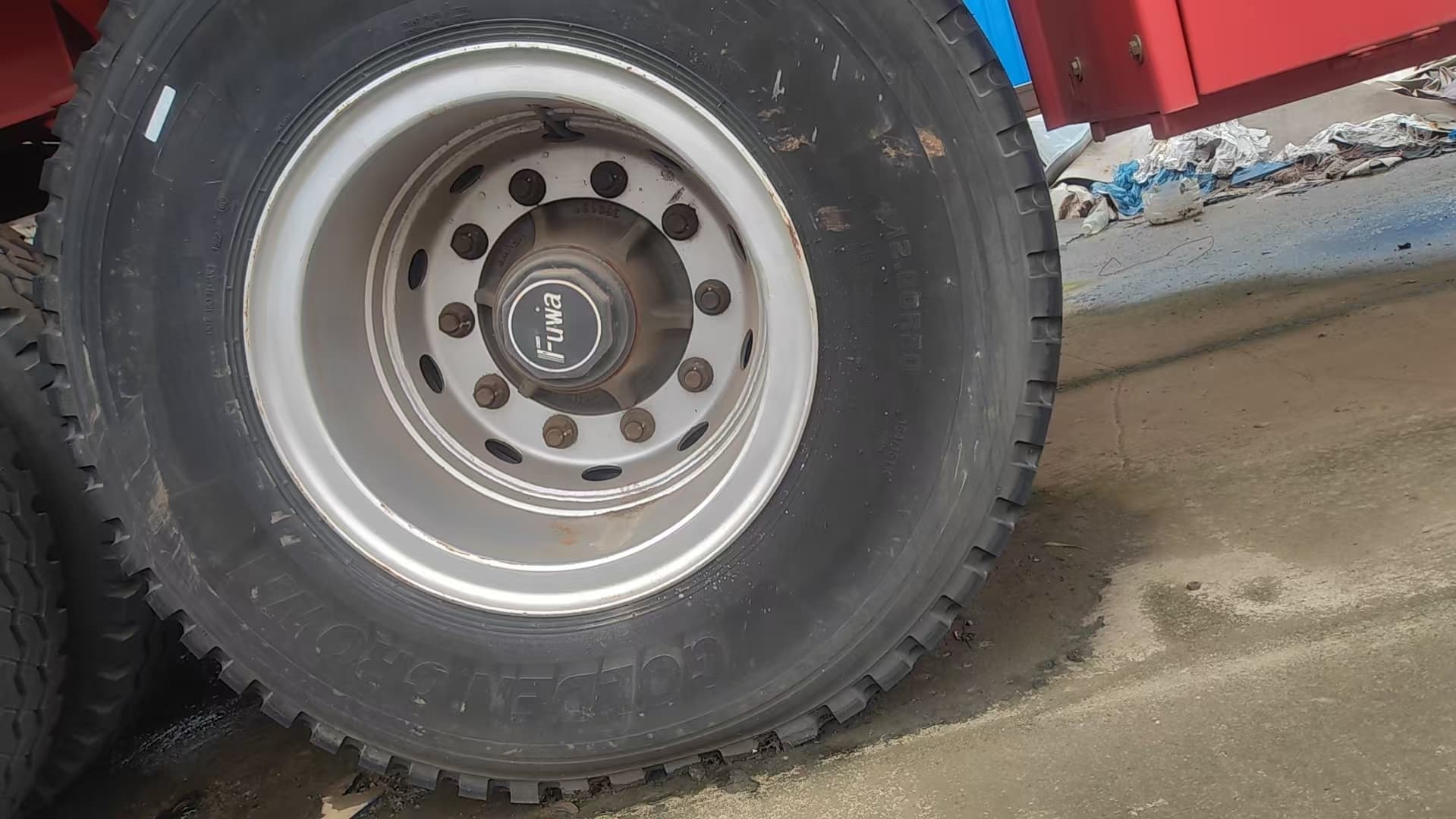

• Tires: Jinguang 12.00R20-18PR, 16 pieces

• Wheel rims: 8.5-20, 16 sets

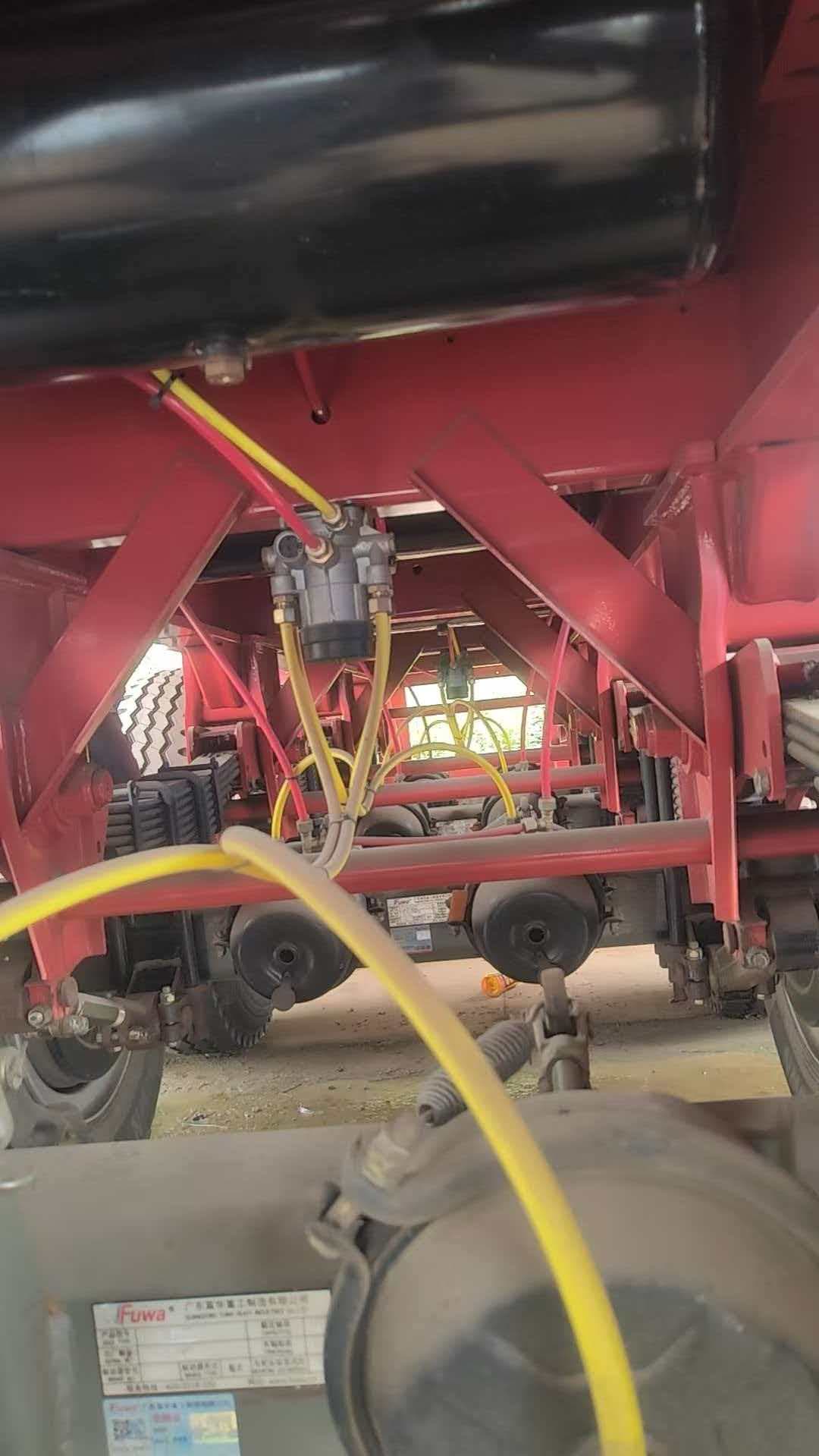

• Brake system: WABCO relay valve; 6 dual air chambers + 2 single air chambers

Our advantages：

1、In terms of engine selection, we generally install and use the MC series
engines, as well as the leading Weichai WP series engines in China. It
has a large displacement, ranging from 10L to 13L, and a horsepower
range from 380 to over 600 horsepower. It features high torque and
strong explosive power.

2.SINOTRUK HOWO Tractor uses the HW series transmission or the
world-class ZF automatic transmission. The gear shifting logic is clear
and the transmission efficiency is high.

3.It adopts the technologically advanced MAN technology axle, which has
strong load-bearing capacity, high transmission efficiency, and has
achieved a long oil change cycle (such as oil change every 100,000
kilometers), reducing the time for station maintenance.

4. We offer customizable combinations. If you have specific requirements, please contact us and we will communicate with you.

Our after-sales service：

We not only offer standardized products but also provide you with
customized services. We can manufacture complete vehicles based on the
design drawings you provide or for special working conditions.

To ensure the timeliness of every cooperation, the company has a complete
customer service system. For every inquiry from both new and old
customers, we solemnly promise to respond promptly within 24 hours and
have one-on-one communication with professional account managers to
answer your questions and accurately understand your needs.

Whether it is professional consultation before sale, we offer usage
instructions and systematic training. We hope to have a long-term
cooperation with our customers and provide worry-free services.
